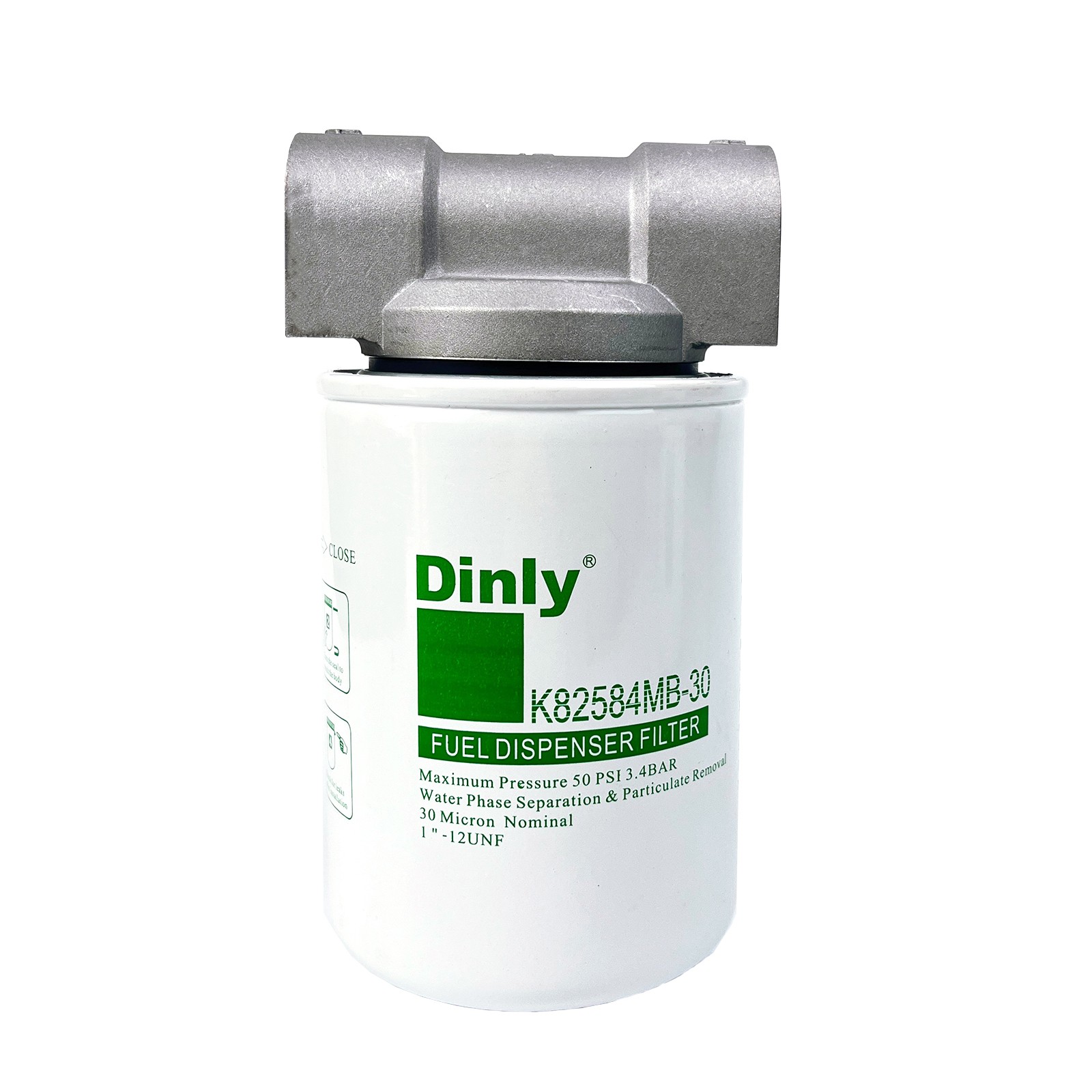

3. K82584MB-30 is spin-on filters designed to remove particulate, detect and stop flow of phase separation (Ethanol water) in Ethanol blended fuels.
4. K82584MB-30 is designed to remove particulate and to detect and react to phase separation in Ethanol blended gasoline and slow flow as an indicator to the presence of phase separation.
5. The maximum flow rate is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid(3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).
6. The model K82584MB-30 utilizes a standard 1"-12 UNF mounting thread ref. (3/4" flow) required for most spin-on filter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers,as well as with adapters used in the aftermarket.
Filter Dimensions
Technical Index
Model
K82584MB-30
Filter Type
Spin-On
Media Type
Multi-layer Composite
Micron Rating
30 Micron (nominal)
Diameter
3.75"
Height
5.31"
Mounting Thread
1"-12 UNF
Flow Rate
25 gpm (94.6 lpm)
Flow
3/4" flow
Shell Thickness
0.05
Gasket Material
Buna N
Collapse (Min.)
150 psid (10.3 bar)
Burst (Min.)
250 psi (17.2 bar)
Max. Operating Temp.
250°F (139°C)
