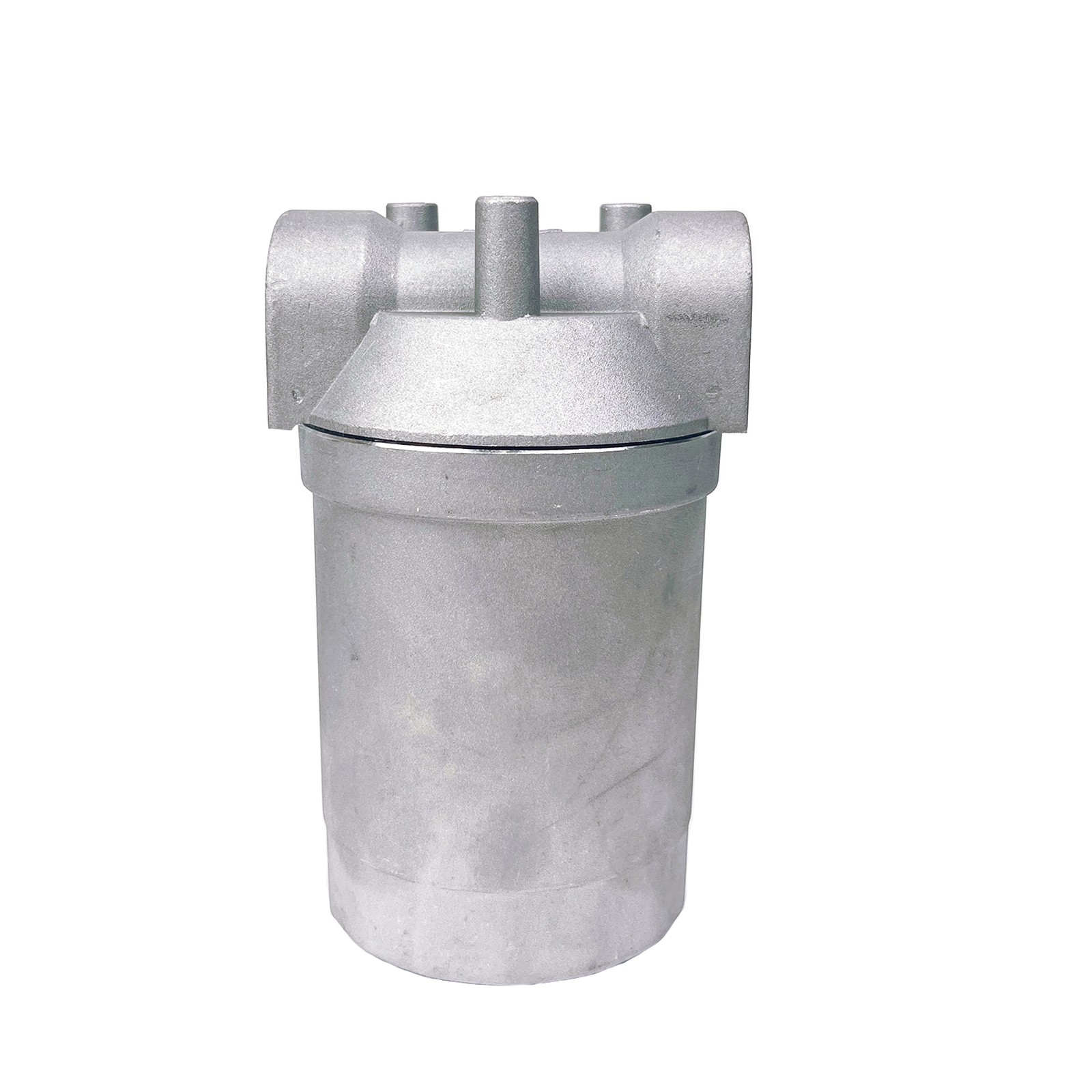

Aluminum Shell Fuel Dispenser Filter High Flow Fuel Filter with Bracket
The Reusable filter are designed for enlarge the filter working life and substitute the disposable filter, in order to save customer’s cost and protect
这些可重复使用的过滤器旨在延长过滤器的使用寿命，从而替代一次性过滤器。这样能够降低客户的成本，同时也有助于保护环境。
The Reusable filter are designed for enlarge the filter working life and substitute the disposable filter, in order to save customer’s cost and protect the environment.
Reusable filter are only need to unload and clean the filter cartridge and then install back for use, in order to meet the markets request, we development the paper material cartridge, stainless steel mesh material and water absorb cartridge for substitutes.
Benefits:
Assure delivery of fuel quality for high-capacity fill rate.
Hardware cloth offers higher efficiencies and longer life.
Added protection to gasoline dispenser.
Decreased filter change out.
Easy of instillation pre-lubed gaskets.
Technical Index
Filter Type
Spin-On
Media Type
Cellulose
Micron Rating
10/30 Micron (nominal)
Length
97mm
Height
135mm
Mounting Thread
1 1/2" – 16 UNF
Flow Rate
25 gpm (94.6 lpm)
Shell Thickness
0.05
Gasket Material
Buna N
Collapse (Min.)
150 psid (10.3 bar)
Burst (Min.)
250 psi (17.2 bar)
Max. Operating Temp.
250°F (139°C)
