Product Description

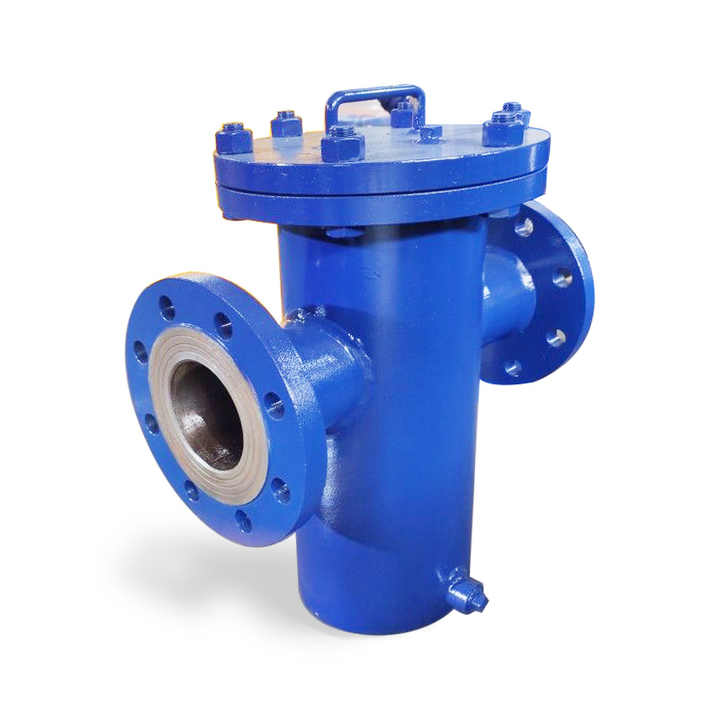

Large flow filtration: The diameter of DN80 basket filter is large, and the nominal diameter is 80mm, which can adapt to the fluid filtration needs of large flow. In industrial pipeline systems, such as chemical, petroleum, pharmaceutical and other industries, for handling a large number of liquid media, it can ensure that the fluid passes through the filter at a higher flow rate without causing excessive pressure loss, so as to achieve an efficient filtration process.
Effective interception of impurities: The internal basket filter can effectively intercept solid impurities in the fluid, such as rust, welding slag, granular sediment and so on. The filtration accuracy of the filter can be selected according to the specific application scenario, and the general range is from a few millimeters to tens of microns, ensuring that only pure fluid passes through the filter and protects downstream equipment from damage from impurities.
Basket filter structure: The use of basket filter is a significant feature of DN80 basket filter. The filter screen is in the shape of a basket, which is installed inside the filter and has a large filtering area. This structure allows impurities to accumulate inside the screen without directly clogging the pipe, and it is easy to remove the screen for cleaning or replacement. For example, in the water treatment system, when the impurities in the water are intercepted by the filter screen, they accumulate in the basket, and the filtering function of the filter can be restored as long as the basket filter screen is removed and cleaned regularly.
Import and export design: The import and export of the filter are usually connected by flanges, which is firm and reliable and can withstand high pressure. Moreover, the design of the inlet and outlet ensures that the fluid can be evenly distributed when entering and exiting the filter, reducing the turbulent flow phenomenon of the fluid, reducing the pressure loss, and improving the filtration efficiency.
Bottom blowdown design: The bottom of the filter is provided with a sewage outlet for discharging impurities accumulated in the filter screen. The sewage outlet can be easily connected with the sewage pipe. By opening the sewage valve, the impurities can be quickly and thoroughly discharged from the filter to keep the filter in good working condition.
