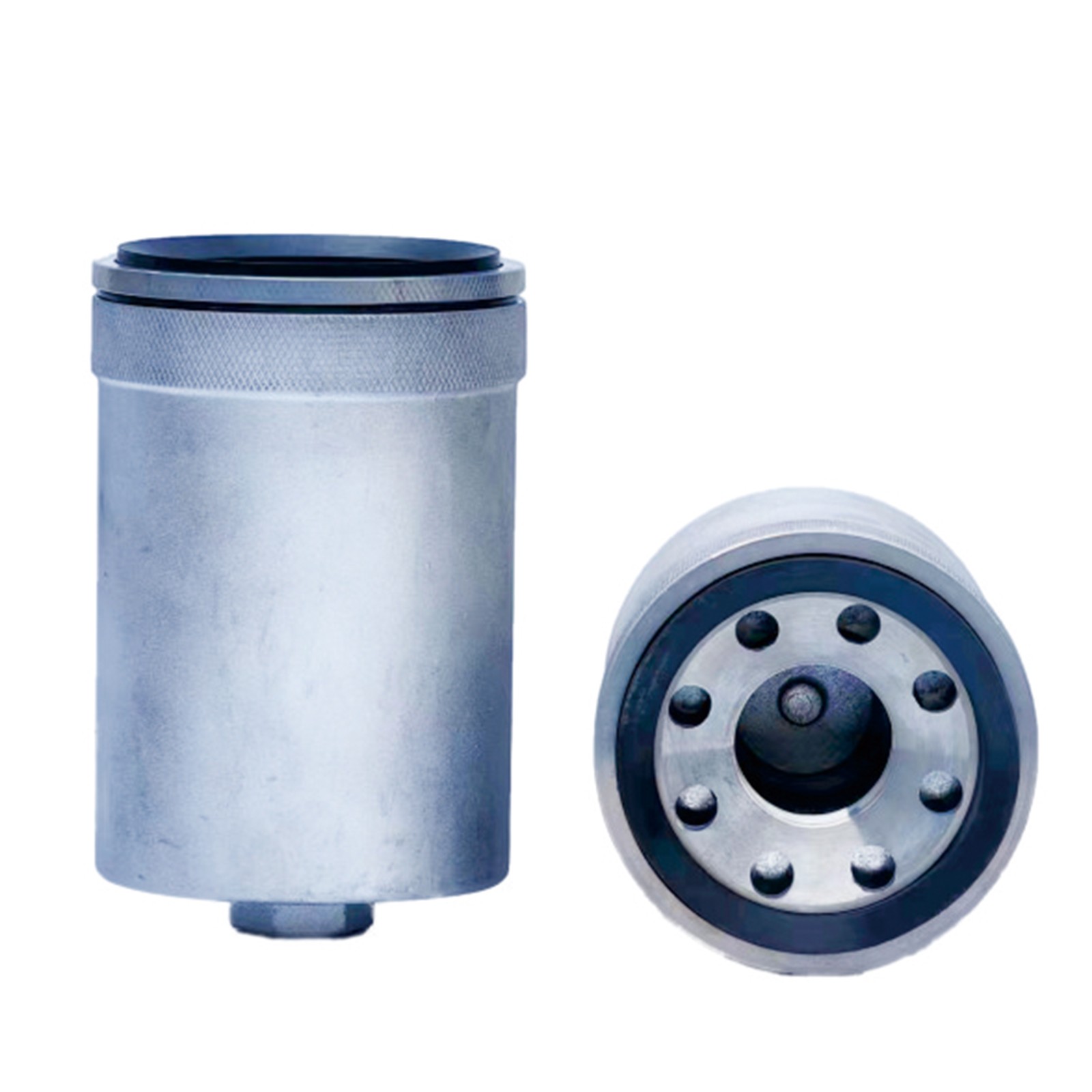

Unload And Reusable Filter Aluminum Housing R18189-10U/30U/144U

R18189-10U/30U/144U Unload And Reusable Filter Aluminum Housing

The Reusable filter are designed for enlarge the filter working life and substitute the disposable filter, in order to save customer’s cost and protect

the environment.

Email:
sales@dinlyfilter.com
Tel：
+86-13673354165 0086-371-60301602

Send Email Inquiry Now

Products Description

The Reusable filter are designed for enlarge the filter working life and substitute the disposable filter, in order to save customer’s cost and protect the environment.

Reusable filter are only need to unload and clean the filter cartridge and then install back for use, in order to meet the markets request, we development the paper material cartridge, stainless steel mesh material and water absorb cartridge for substitutes.

Benefits

Assure delivery of fuel quality for high-capacity fill rate.

Hardware cloth offers higher efficiencies and longer life.

Added protection to gasoline dispenser.

Decreased filter change out.

Easy of instillation pre-lubed gaskets

Technical Index

Model	R18189-10U/30U/144U
Filter Type	Spin-On
Media Type	Cellulose
Micron Rating	10/30/144 Micron (nominal)
Length	97mm
Height	135mm
Mounting Thread	1 1/2" – 16 UNF

Flow Rate	25 gpm (94.6 lpm)
Flow	1" flow
Shell Thickness	0.05
Gasket Material	Buna N
Collapse (Min.)	150 psid (10.3 bar)
Burst (Min.)	250 psi (17.2 bar)
Max. Operating Temp.	250°F (139°C)
